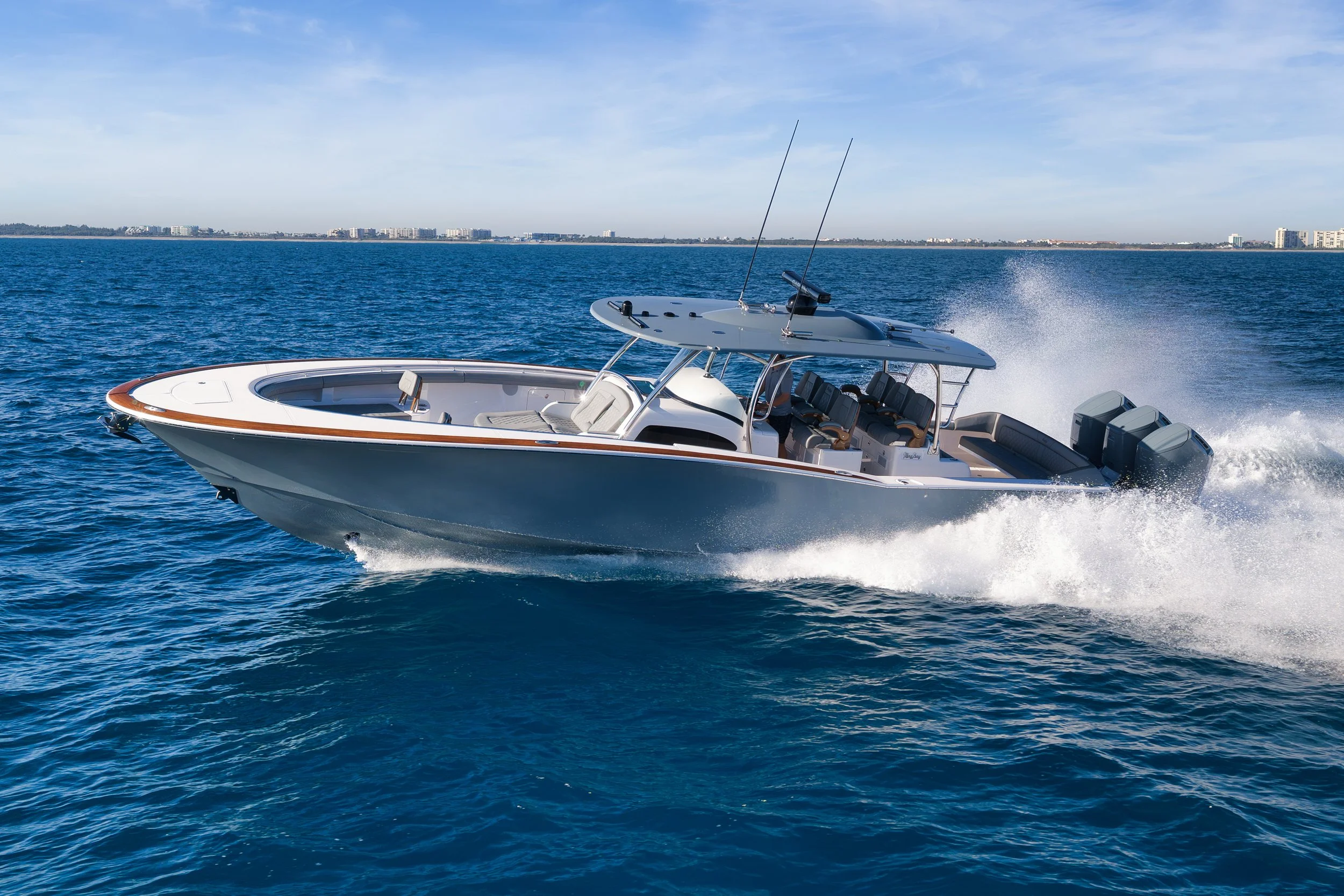

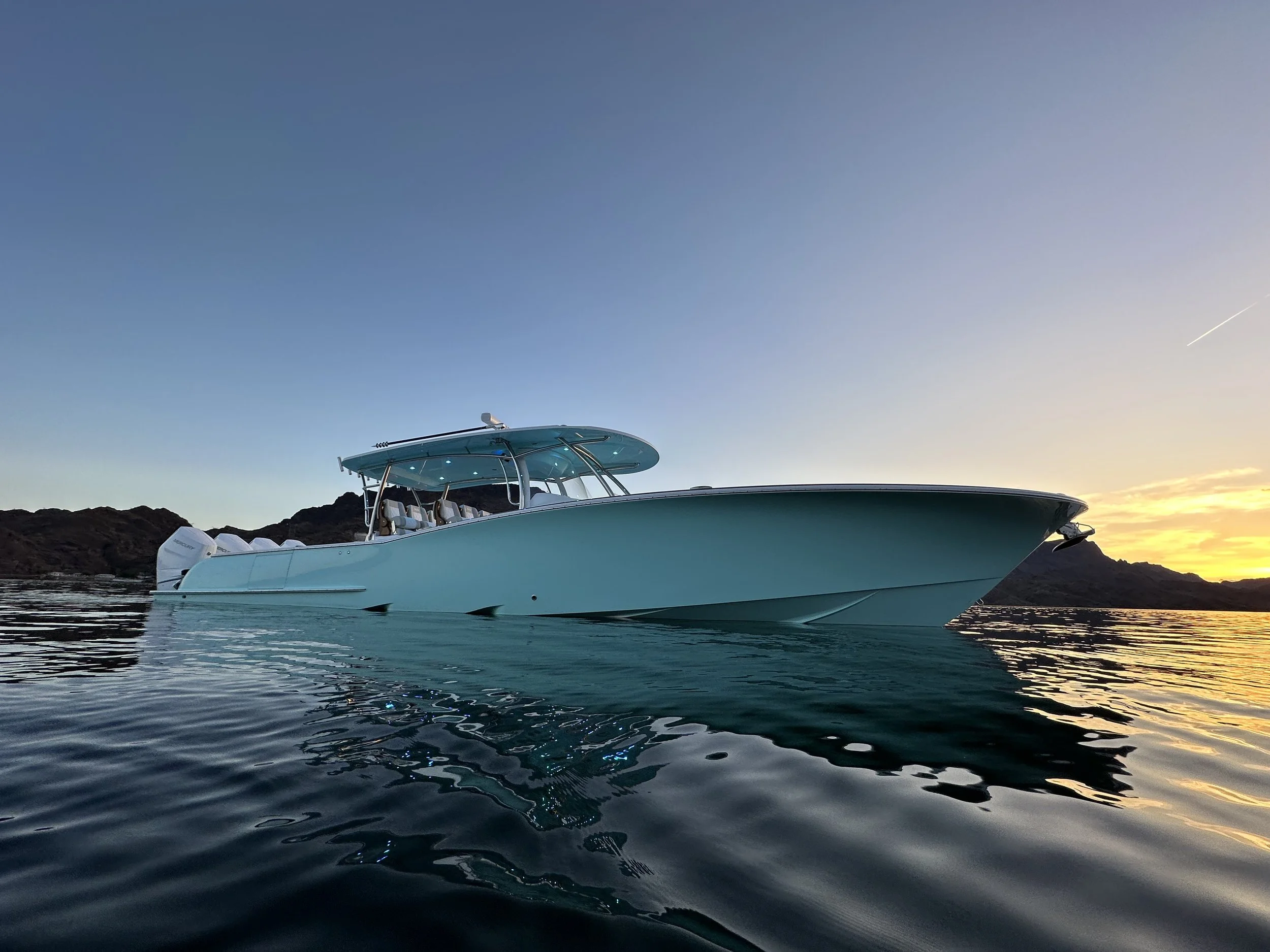

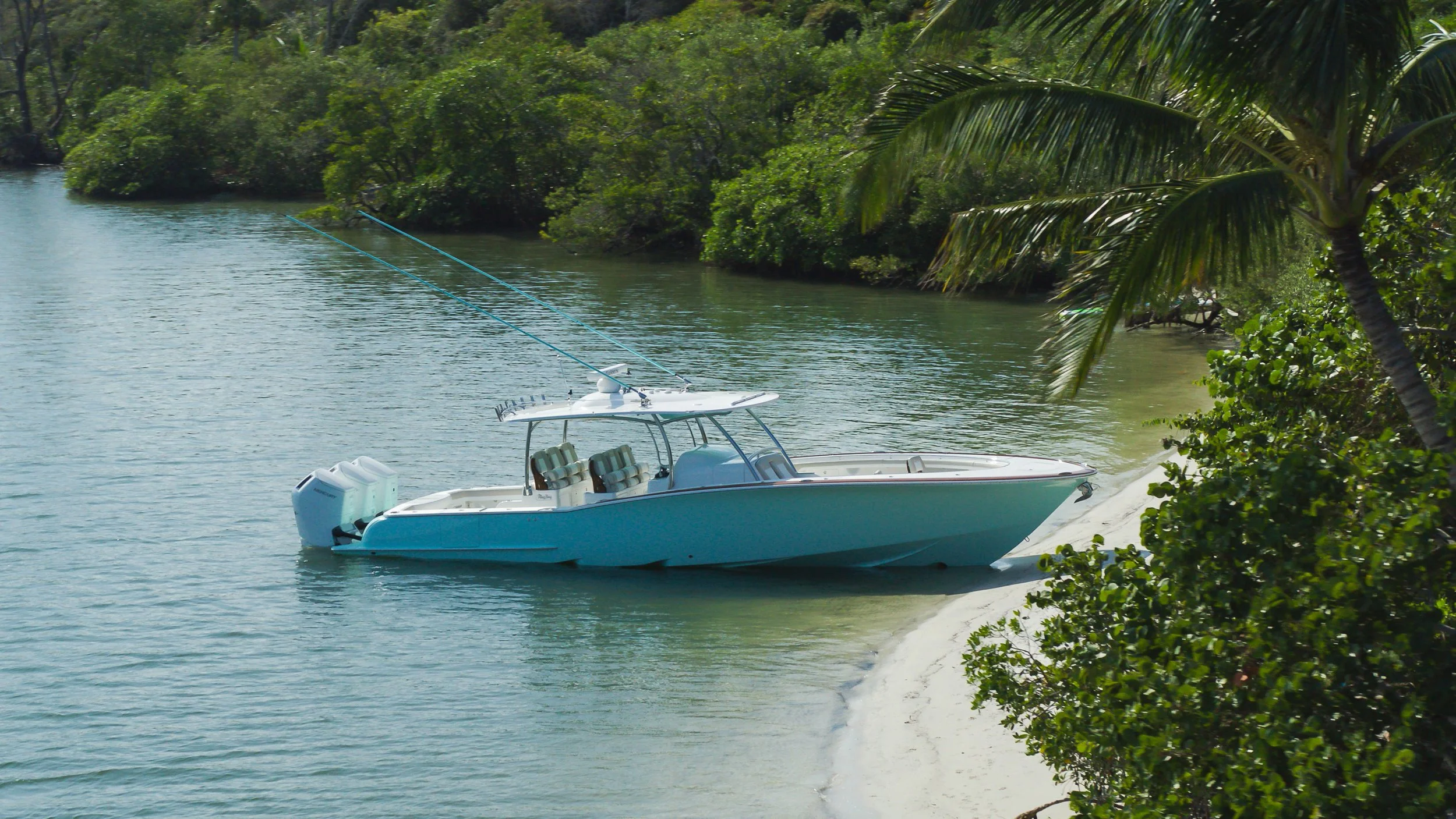

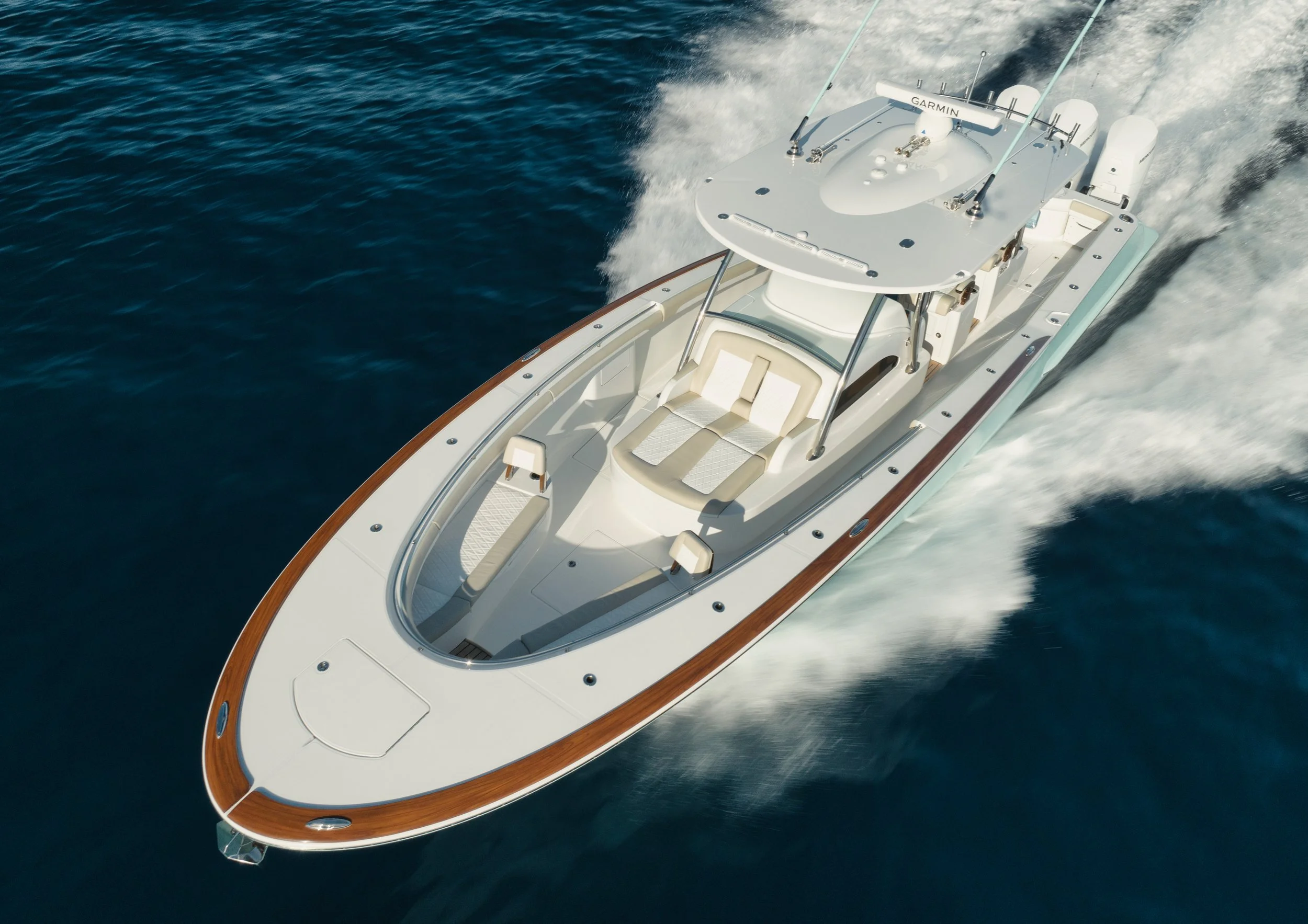

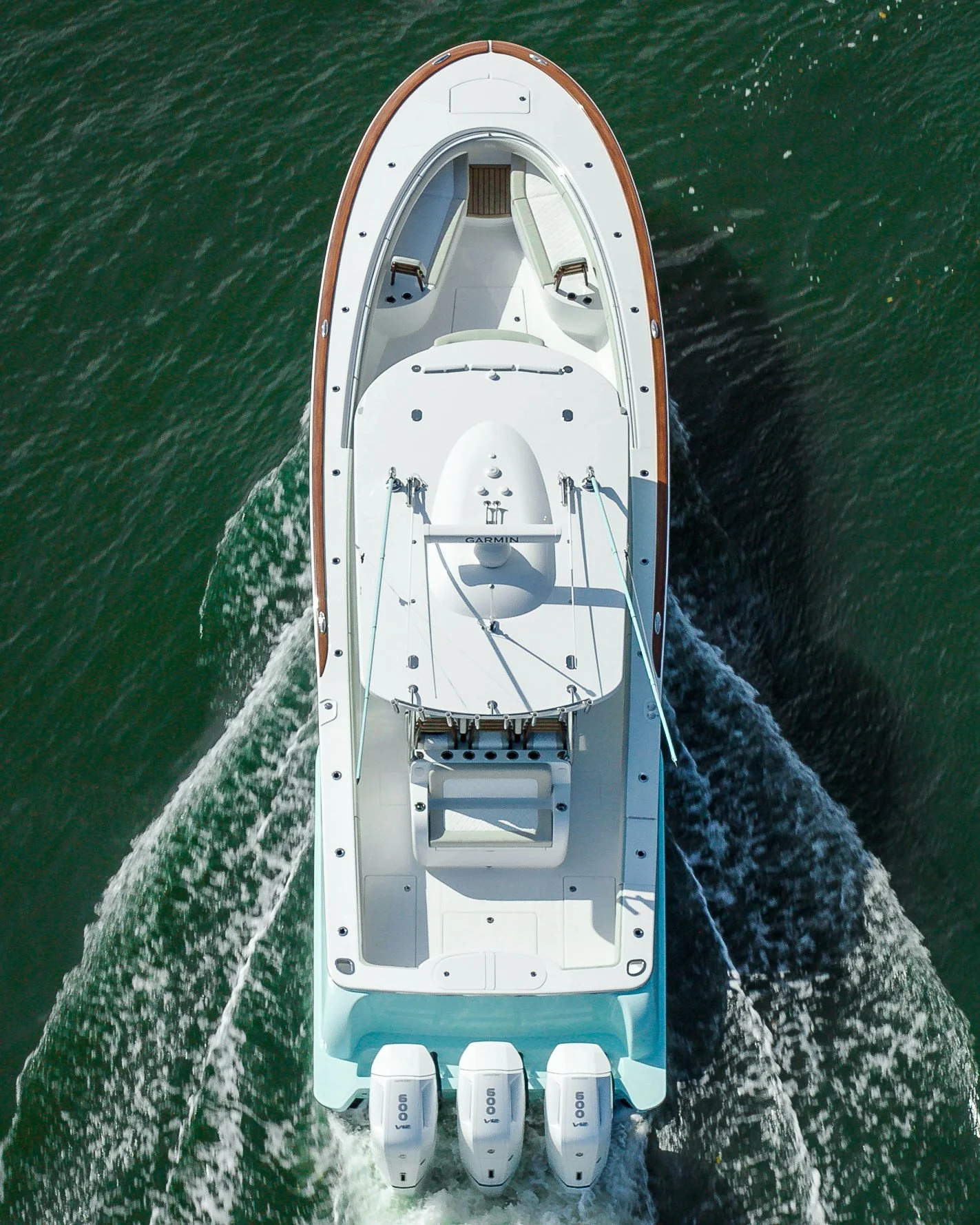

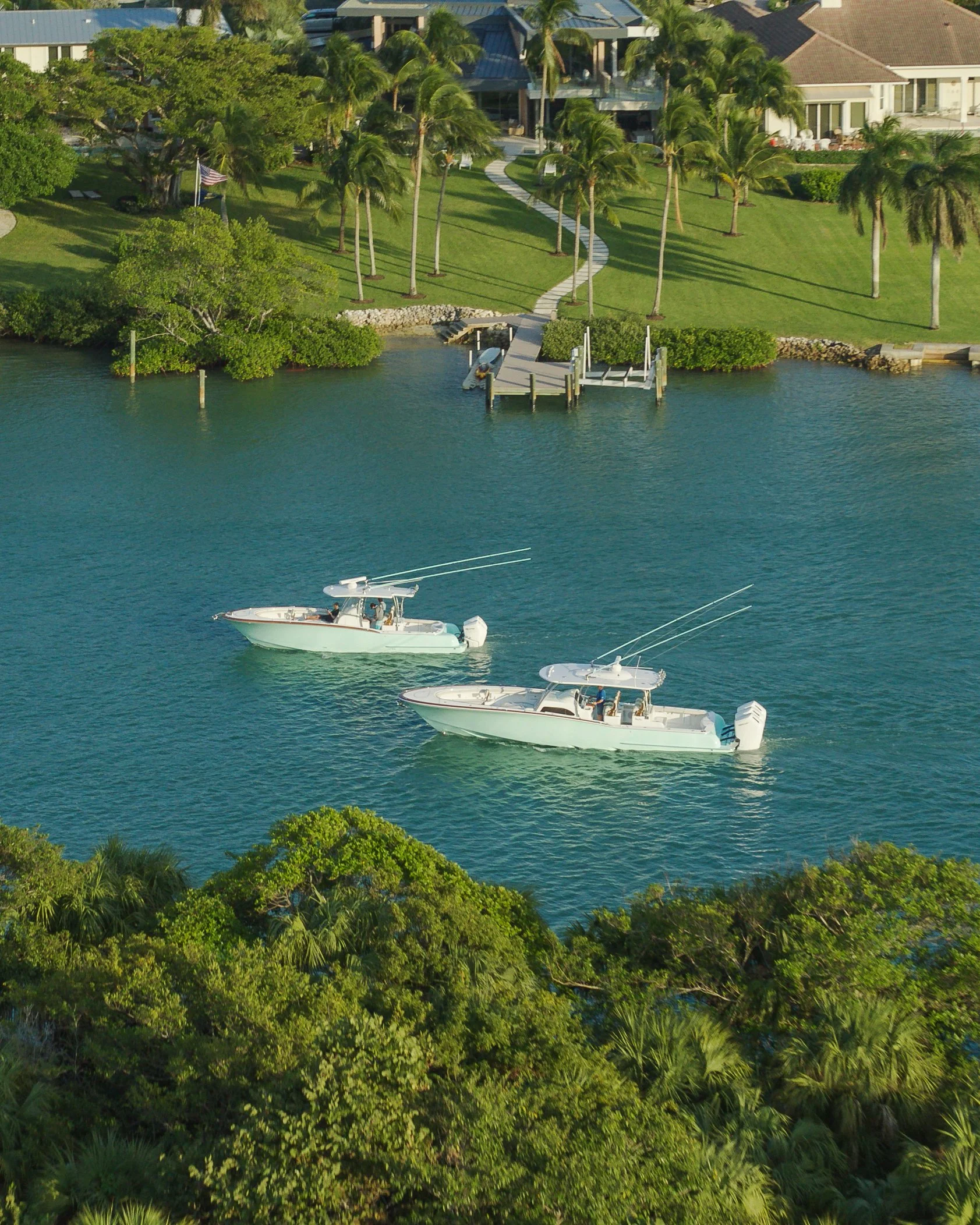

THE MAG BAY 43
CENTER CONSOLE
When we set out to build our flagship model, the 43 CC, we approached it with the same philosophy as our other boats - to build the highest quality boat on the water. Beautiful looks combined with a patented Cross-Step hull design deliver the ultimate in luxury and performance.
Since its launch in 2022, the Mag Bay 43 CC has proven to be the perfect balance of aggressive hull design with the fit, finish, and utmost level of craftsmanship that Mag Bay Yachts is known for. Equipped with a comfortable cabin and dual-row helm seating, there is plenty of seating and accommodation for long runs offshore or family cruising alike. Featuring our industry-leading stainless steel fabrication, custom hardware, and attention to detail, this boat features yacht-caliber finish work on a platform that runs like nothing else in its class.
43 CC AT A GLANCE
L.O.A. 43’ 2”
B.O.A. 12’
DRAFT 2’ 6”
FUEL: (3 Tanks) 645 Gal
WATER: 80 Gal
WASTE: 23 Gal
FISH BOX: 2100 Quarts
BAIT TANK: 75-Gal Transom
DEADRISE AT TRANSOM 24°
DISPLACEMENT:
19,280 Dry /24,000 Loaded
43 CC STANDARD FEATURES
CONSTRUCTION
100% Vinylester Resin Construction
Gurit® Cored Hullsides, Solid Fiberglass Bottom
Unique “Unibody” Transom
Triple Reinforced Hull-Deck-Liner Joint Throughout Entire Boat
Fiberglass Molded Stringer Grid System For Added Strength
Premium Proprietary Gelcoat Used Throughout
316 Stainless Steel Rubrail
316 Stainless Bow And Stern Eyes
Starboard Side Inward Swinging Side Door With Folding Gunnel Gate
Custom Made 316 Stainless Steel Hinges On Anchor Locker And Side Door
Integrated Transducer Pocket For 2kw Transducer
Industry Leading Fully Glassed And Gelcoated Liner To Deck Joints
Self-bailing Deck With Outboard Gutters
Integrated Hatch Drain System To Outboard Gutters
Molded Toe Rail
Diamond Pattern Nonskid
Custom 316 Stainless Steel Motor Plate
TANKAGE
Two Outboard 110 Gallon ¼” Aluminum Fuel Tanks
One Central 425 Gallon ¼” Aluminum Fuel Tank
85 Gallon Freshwater Tank With Deck Fill On Console
23 Gallon Holding Tank With Deck And Overboard Discharge Ports
75 Gallon Pressurized Aft Livewell
PUMPS AND PLUMBING
70 Psi. 6gpm Saltwater Washdown Pump
50 Psi. 4gpm Freshwater Washdown Pump
Dometic Masterflush Electric Head With Freshwater Flush
Freshwater Sink Inside Console
Forward And Aft Freshwater And Saltwater Washdown Spigots

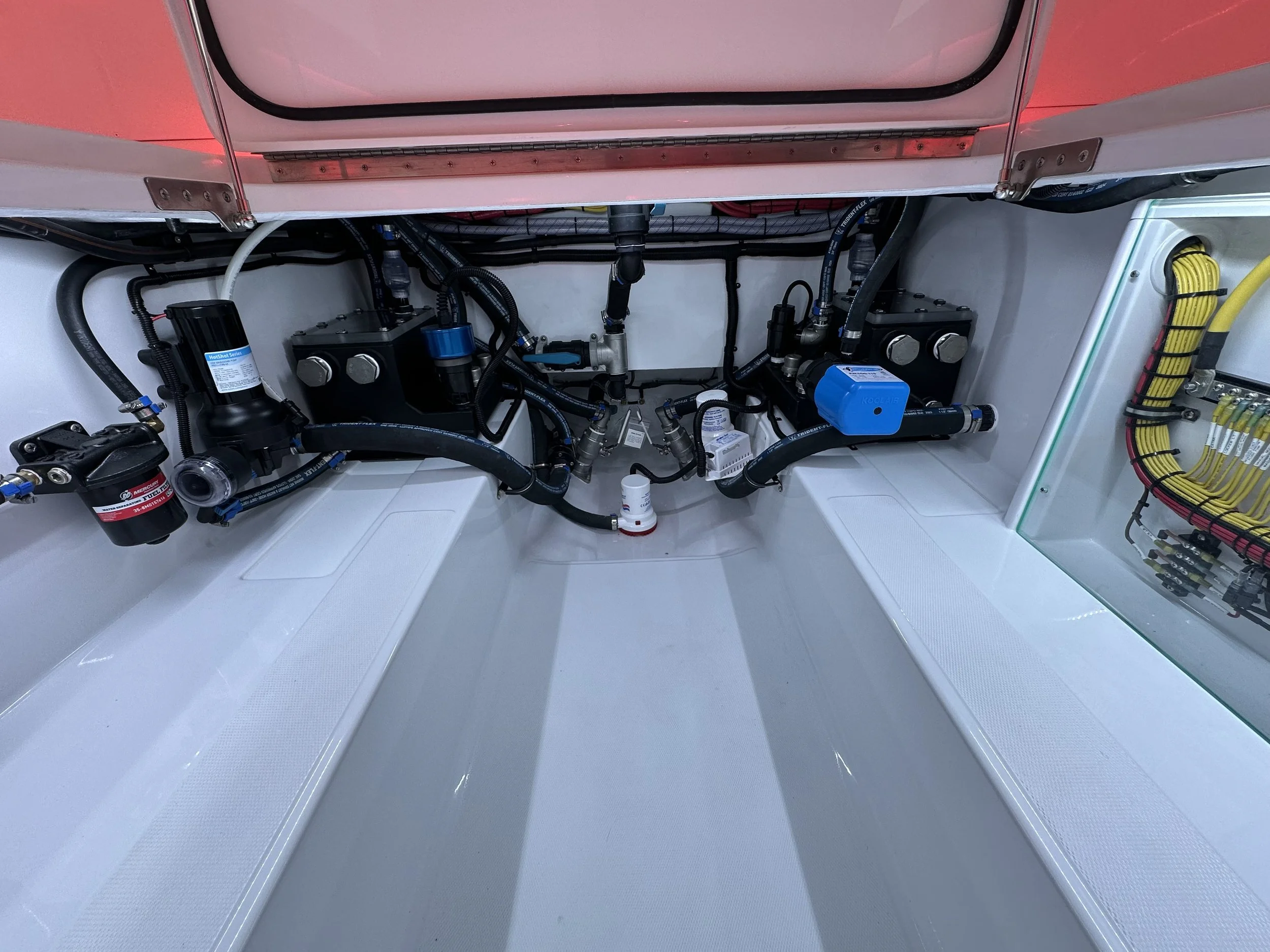

Dual Rule 2000gph Bilge Pumps In Aft Lazarette
Rule 1000gph Lo-profile Bilge Pump In Forward Console
Rule Float Switches
Macerator Pumps For All Fish Boxes
Whale Macerator Pump For Head

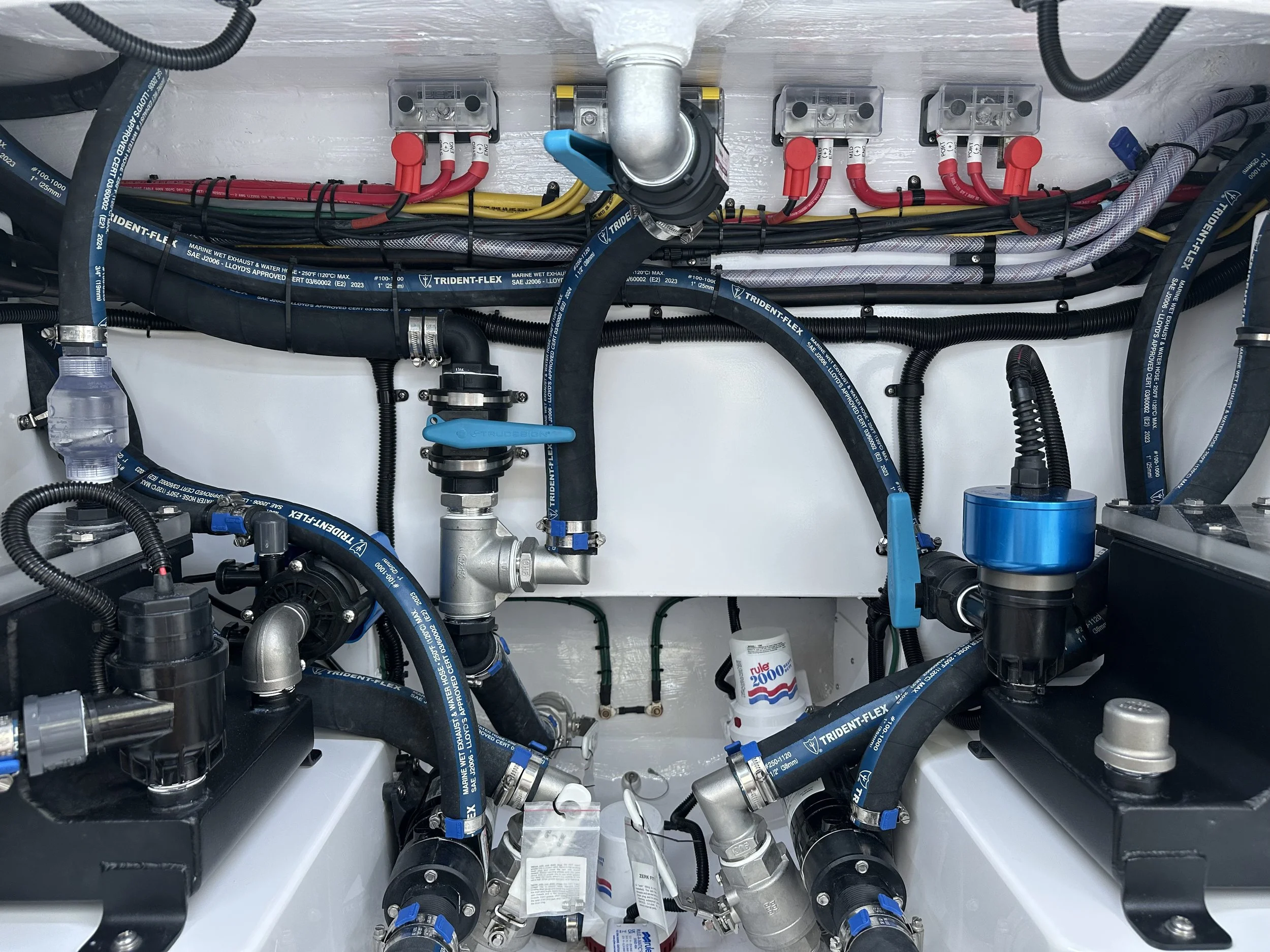

Dual Hooker Electric Sea Chest In Aft Lazarette
Hooker Electric Variable Speed Bait Tank Pump
Integrated Engine Flush From Reverso
All Thru Hulls And Ball Valves Are 316 Stainless Steel

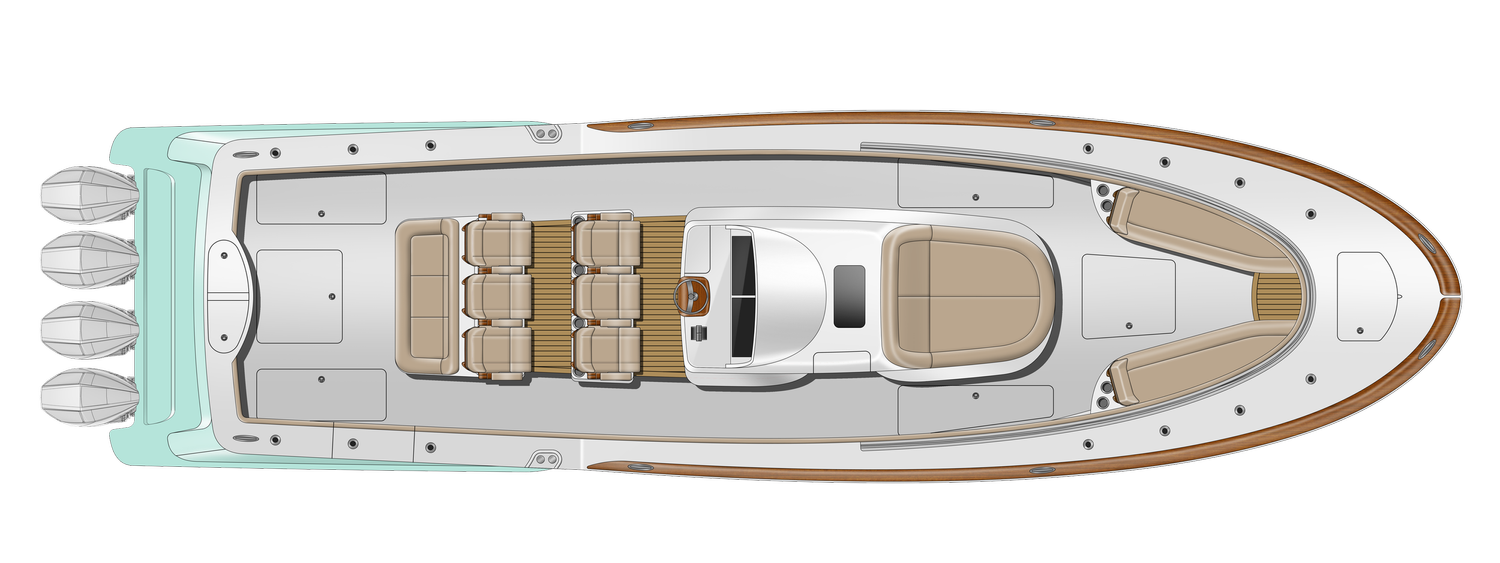

LAYOUT
Two In-Deck Forward Fish Boxes
Oversized Above Deck Insulated Console Storage With Drains To Deck
Bow Seating With Large General Storage Compartments
Oversized Insulated In-deck Forward Fishbox With Dedicated Macerator Pump
Oversized Self-draining Anchor Locker With Sealed Forward Crash Bulkhead
Mirror Inside Console
Forward Sunpad Console With Above Deck Insulated Storage

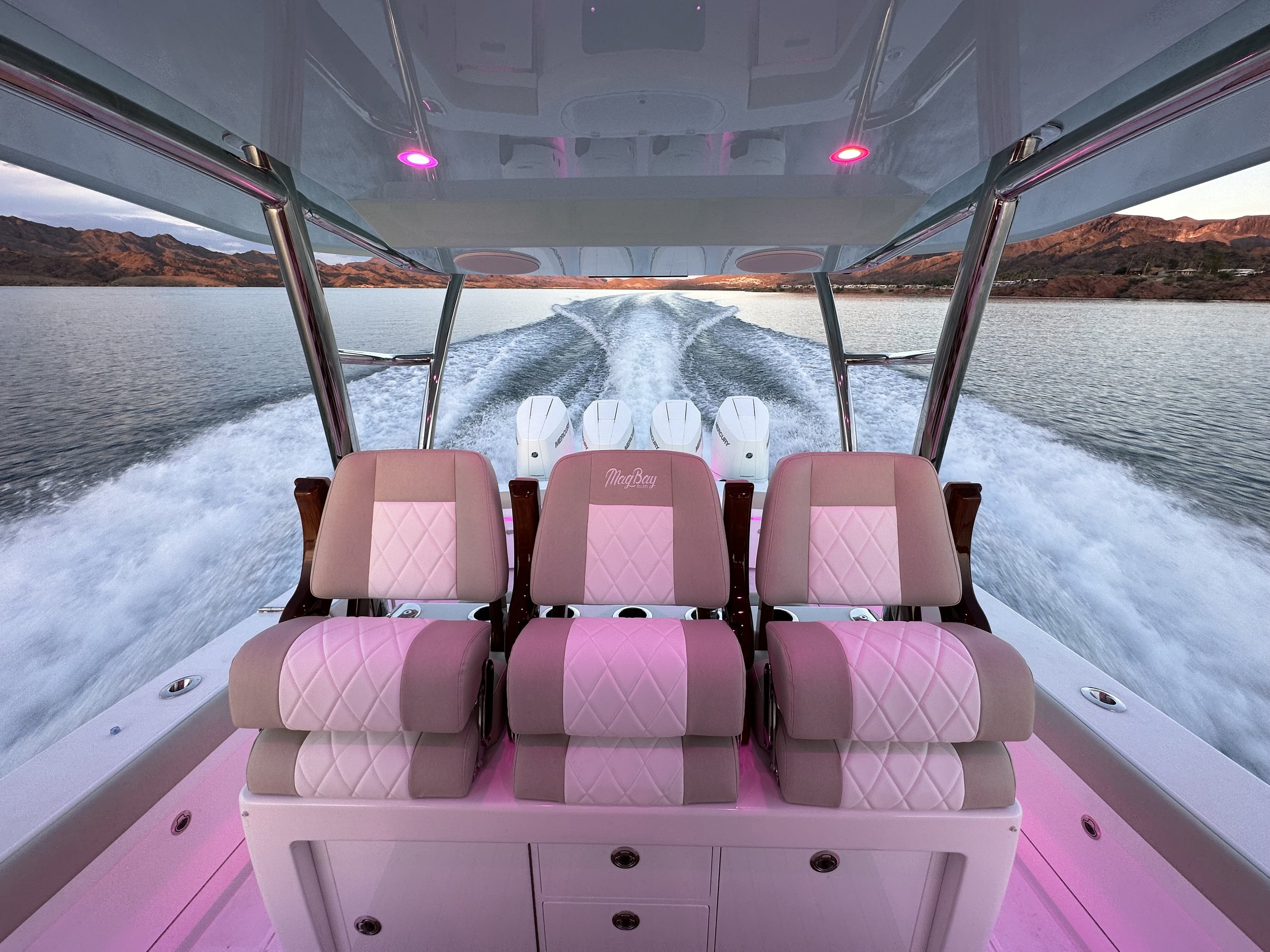

Aft Console With Triple Wide Release Marine Helm Seats and Aft Facing Mezzanine Seating

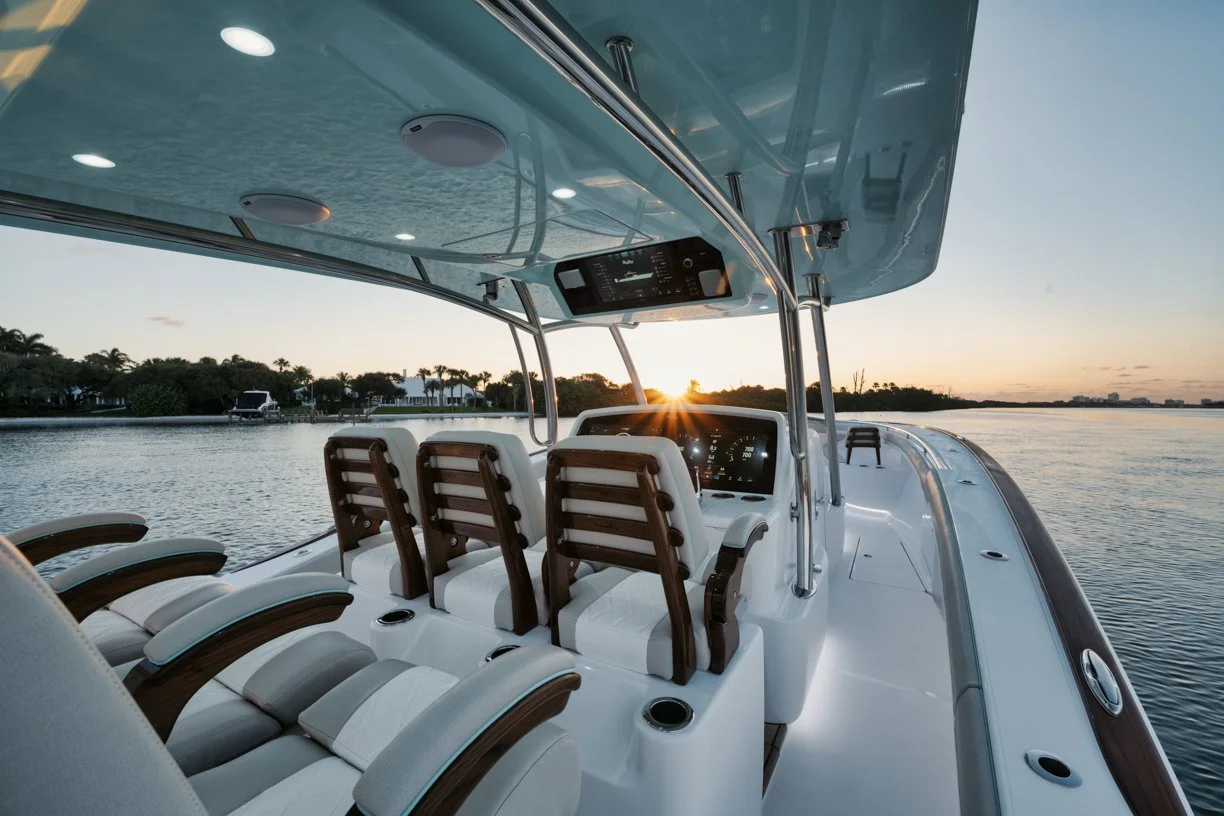

Mid Console with Triple Wide Release Marine Helm Chairs
Elevated Aft Console Helm Floor for Added Visibility
Slide Out Trash Can and Drawers on Aft Console
Two Dedicated Insulated Cockpit Fishboxes With Dedicated Macerator Pumps
Generous Aft Lazarette w/Seakeeper SK4 (Standard)
Outboard General Storage Lockers
Console Fiberglass Pod
Premium Silicone Based Leather Upholstery
ELECTRICAL
(6) Lithium Batteries
Full Victron Lithium Smart Controllers
Victron 5000 Watt Inverter/Charger
Garmin EmpirBus Digital Switching
All Wiring Throughout Boat Is Tinned Copper
All Wiring Has Heat Shrink Thermal Labels And Connectors
Electronic Steering With Joystick Control

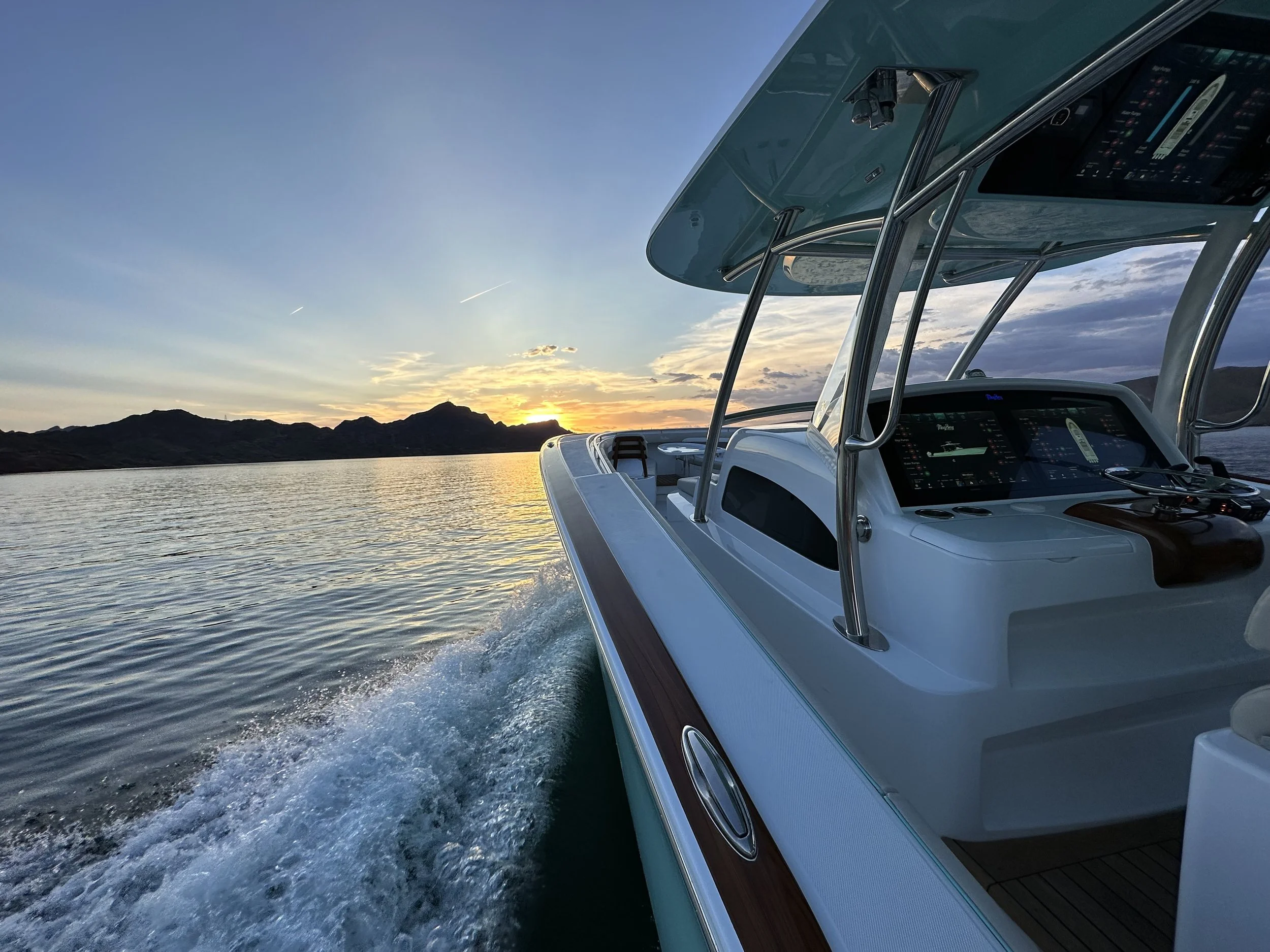

T-TOP
316 Stainless Steel Construction With Mirror Polished Welds.

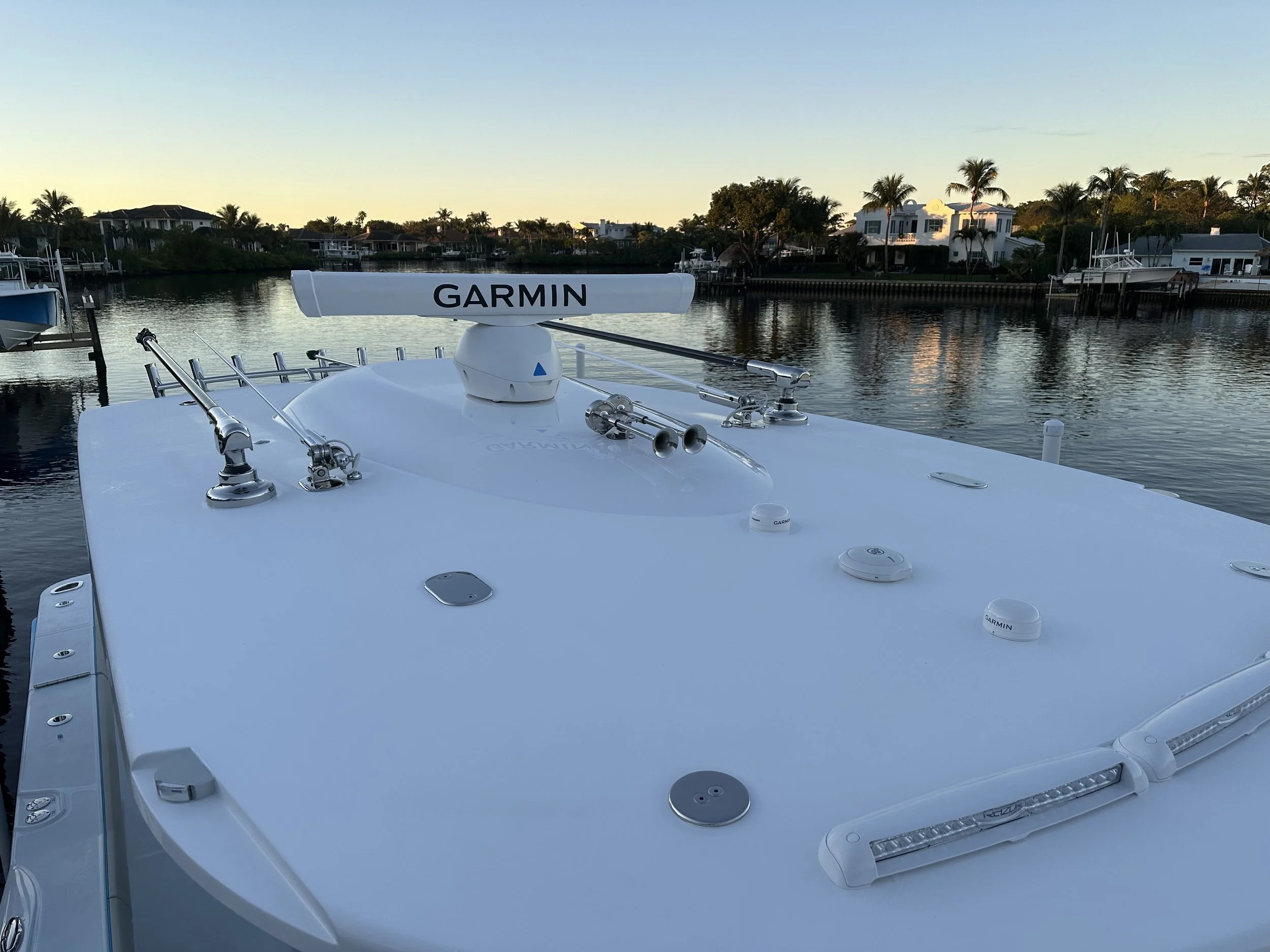

Oversized Fiberglass Hardtop
T-Top Molded In Electronics Box With Motor Display
Integrated VHF Mounts Into Backing Plates
Folding Anchor Light Controlled From Underside Of Hardtop
2nm Lumitec Navigation Lights
Forward And Aft Lumishore Spreader Lights
HARDWARE
316 Stainless Piano Hinges
Premium Gemlux Cleats
Six Gemlux Bluewater Rod Holders Standard
Groco 316 Stainless Steel Ball Valves And Sea Cocks
Southco Latches And Door Handles
Ongaro Steering Wheel
Mate Series Cupholders
Custom 316 Stainless Side Door Hinges And Latches
Custom 316 Stainless Steel T-top Industry Exclusive
Muir Stainless Windlass w/Ultra Anchor
OPTIONS
ENGINE OPTIONS
Twin Mercury Verado 600hp V12 Standard
Quad Mercury Verado 400hp V10
Triple Mercury Verado 600hp V12
LIGHTING OPTIONS
Color Change Lumishore Underwater Lights
Additional Lumishore Underwater Lights
Locker LED Lights (White)
Lumishore Deck Accent Lighting
Lumitec Razor LED Light Bars On Hardtop
FISHING OPTIONS
Gemlux Outrigger Bases
Gemlux Carbon Outriggers
Additional Gemlux Rod Holders
Electric Reel Outlets 12V
Electric Teaser Reels In Hardtop
Clear Transom Livewell Lid
Tackle Tray Storage in Back Rest
Stainless Steel Rod Holder Rack (T-Top)
SEATING OPTIONS
Flip-up Aft Seating
Wraparound Aft Seating in lieu of livewell
Diamond Stitching On Upholstery
GENERAL OPTIONS
Hull Color – Gelcoat
Underside Hardtop Color - Gelcoat
Hull Color – Awlgrip
Underside Hardtop Color - Awlgrip
Bottom Paint
Painted Boot Stripe
Removable Polycarbonate Console Windscreen
Solid Windshield for Helm
Fiberglass Bow Table
Chill Plate in Mezzanine Seating
Glass Dash Acrylic Backsplash On Dash
Helm Seating Module w/Bait Prep Station, Sink and Electric Grill (in lieu of standard mezzanine)
Air Conditioning Helm
Air Conditioning Cabin
Hot Water Heater and Console Shower
Refrigerator/Microwave in Cabin
Bow Towing Eye 1” Stainless
Faux Teak Cap Rail
Faux Teak Helm Pod
Helm and Bow Seating Teak Trim
Garmin Electronics Package
Full Bausch Tower
